SuperKam 60S Hose Crimper Manual Opeation 2″4SP
Description
Shanghai APT SuperKam 60S hose crimping machine force reaches 200T (2000 KN), with a crimp range of 6-73mm and 10 sets of standard dies. SuperKam 60S Hose crimpers are widely used for crimping high-pressure fuel pipes, industrial hoses, hydraulic hoses and water hoses and automabile air bags.
Max Hose Inner Diameter:
- Industrial hoses: 2½”
- Hoses with 2 braided wires: 2″
- Hoses with 4 spiral wires: 2″
Advantages
- Manual control;
- High pressure display and super clamping accuracy.
- Compact structure, light weight, easy operation;
- Adjustable mouth opening, built-in delayed pressure holding.
Details Makes SuperKam60S Distinguished
- Manual crimping machine
The manual curling machine is small in size and easy to move. No power supply is required, so there are almost no environmental restrictions. Can provide convenience for outdoor mobile machinery maintenance. - Materials
The oil cylinder cover, oil tank, and piston rod are made of 40 chromium, which is resistant to high pressure and has strong impact absorption capacity, improving the durability of the oil cylinder and piston rod. - Hydraulic transmission system
The hydraulic transmission system adopts pipeline free valve block connection, which has oil tightness and durability, low heat, and stable pressure transmission. - Mold connection
Our crimping molds are connected magnetically for easy assembly and disassembly, ensuring neat crimping.
Machine Data
| Crimp head material | Forged Steel (Cr40) |
| Crimp range | 6-73 mm |
| Hose size | 2″ 4SP |
| Passing diameter | 118mm(6 5/16″) |
| Opening diameter without mould | 118mm(6 5/16″) |
| Opening | +25mm |
| System pressure | 31.5Mpa |
| Crimp force | 2000kN/200 T |
| Drive | 5.5kw |
| Standard voltage | Customized 110V-480V |
| Control | Manual |
| Standard dies | 10sets, lengths of master dies 90mm |
| Weight | 145kg |
| Dimension (L*W*H) | 550×280×550mm |
Specification of dies
| No. | Φ6 | Φ8 | Φ10 | Φ13 | Φ16 | Φ19 | Φ25 | Φ32 | Φ38 | Φ51 |
| Crimp range | 15-25mm | 18-28mm | 20-30mm | 23-33mm | 26-36mm | 29-39mm | 37-47mm | 46-56mm | 51-61mm | 63-73mm |
| Length | 45mm | 45mm | 45mm | 50mm | 65mm | 65mm | 80mm | 80mm | 80mm | 80mm |

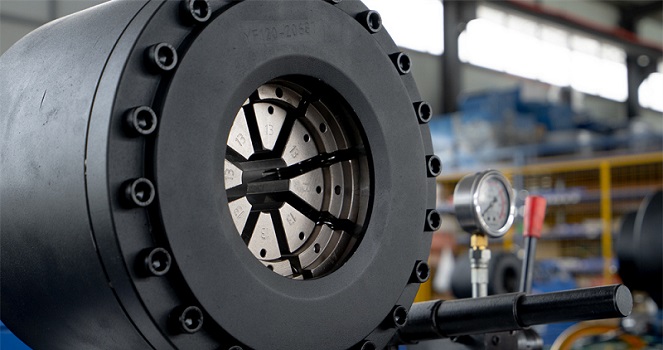

Machine Head
SuperKam 60S hydraulic hose crimping machine is leading in terms of speed, precision, reliability and durability. Suitable for high strength pressure hydraulic hoses and industrial hoses, and designed to handle the high production volumes hoses.

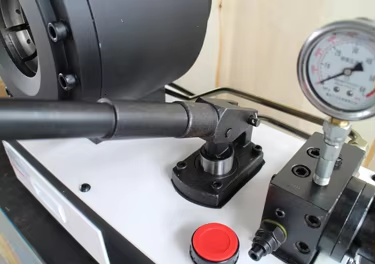

manual Control
The SuperKam 60S is manual control type crimper for hoses, easy operation and light in weight, user-friendlly.

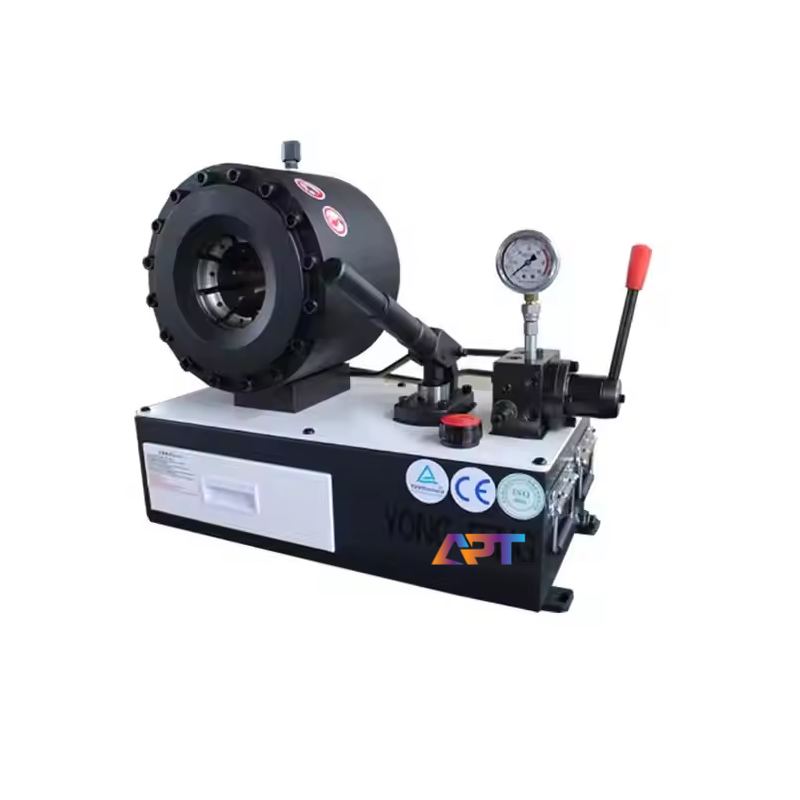

Easy Crimping
The SuperKam 60S rubber hose crimper is small in size and easy to move. No power supply is required, so there are almost no environmental restrictions. Can provide convenience for outdoor mobile machinery maintenance.
Fast Delivery
Hydraulic Crimping Machines-Vertical Crimper Models
| Machine Type | Model | Name | Max. inner diameter | Crimping Ranges | Applications |
| Manual Service Crimpers | SuperKam 60S | 2″4SP CRIMPER | Industrial hoses: 2½” Hoses with 2 braided wires: 2″ Hoses with 4 spiral wires: 2″ |
3~80mm | For crimping high-pressure fuel pipes, industrial hoses, hydraulic hoses and water hoses and automobile air bags. |
| Service Crimpers | SuperKam 60V | 2″4SP CRIMPER | Industrial hoses: 2½” Hoses with 2 braided wires: 2″ Hoses with 4 spiral wires: 2″ |
3~80mm | Outdoor mobile mechanical maintenance. For crimping high-pressure fuel pipes, hydraulic hoses, wire ropes and automobile brake cables. |
| Side Feed Crimpers | DS100 | SIDE-FEED CRIMPER | Industrial hoses: 2″ | 4~65mm | |
| Nut Crimpers | SuperKam 100C | NUT CRIMPER | Hoses with 2 braided wires: 1¼” Industrial Hoses: 2″ |
3~61mm | For crimping air-conditioning pipe, breaking hose, turbocharger water pipe, engine oil cooler hose etc. |
| Production Crimpers（2”-3”） | SuperKam 150 | 2″4SP CRIMPER | Industrial hoses: 2½” Hoses with 2 braided wires: 2″ Hoses with 4 spiral wires: 2″ |
3~80mm | For crimping high-pressure fuel pipes, industrial hoses, fire sprinkler hoses, automobile brake cables, water hoses, air conditioner hoses and bathroom hoses etc. |
| Production Crimpers（2”-4”） | SuperKam 150D | 2″4SP CRIMPER | Industrial hoses: 2½” Hoses with 2 braided wires: 2″ Hoses with 4 spiral wires: 2″ |
3~80mm | For crimping high-pressure fuel pipes, industrial hoses, fire sprinkler hoses, automobile brake cables, water hoses, air conditioner hoses and bathroom hoses etc. |
| Production Crimpers（2”-6”） | SuperKam 180D | 2″6SP CRIMPER | Hoses with 2 braided wires: 3″ Hoses with 4 spiral wires: 2″ Hoses with 6 spiral wires: 2″ |
3~89mm | For crimping high-pressure fuel pipes, industrial hoses, water hoses, automobile air bags and wire ropes etc. |
| Production Crimpers（2”-7”） | SuperKam 80 | 3″6SP CRIMPER | Industrial hoses: 4″ Hoses with 2 braided wires: 3″ Hoses with 4 spiral wires: 3″ Hoses with 6 spiral wires: 3″ |
3~95mm | Opening diameter of 150m, for crimping high-pressure fuel pipes, industrial hoses, airbrake hoses, air conditioner hoses and bathroom hoses. |
| Production Crimpers（2”-8”） | SuperKam 80D | 3″6SP CRIMPER | Industrial hoses: 4″ Hoses with 2 braided wires: 3″ Hoses with 4 spiral wires: 3″ Hoses with 6 spiral wires: 3″ |
Opening diameter of 150mm, for crimping high-pressure fuel pipes, industrial hoses, airbrake hoses, air conditioner hoses and bathroom hoses. | |
| Heavy Duty（4”-25”） | SuperKam 350 | 6″ HOSE CRIMPER | 4 Inch, 6 Inch Industrial Hose Crimping Machine 6 Inch Composite Hose Crimping Machine Industrial / Composite / Hydraulic Hose Crimping Machine |
10~260mm | For crimping large high-pressure fuel pipes, industrial hoses, large water hoses, composite hose, discharge hose etc. |
| Heavy Duty（4”-25”） | SuperKam 390 | 10″ HOSE CRIMPER | 8 Inch & 10 Inch Industrial Hose Crimping Machine 10 Inch Composite Hose Crimping Machine Industrial / Composite / Hydraulic Hose Crimping Machine |
10~305mm | For crimping large high-pressure fuel pipes, industrial hoses, large water hoses, composite hose, discharge hose etc. |
| Heavy Duty（4”-25”） | SuperKam 450 | 12″ HOSE CRIMPER | 10 Inch & 12 Inch Industrial Hose Crimping Machine 10 Inch Composite Hose Crimping Machine Industrial / Composite / Hydraulic Hose Crimping Machine |
10~315mm | For crimping large high-pressure fuel pipes, industrial hoses, large water hoses, composite hose, discharge hose etc. |
| Heavy Duty（4”-25”） | SuperKam 600 | 14″ HOSE CRIMPER | 10 Inch & 12 Inch Industrial Hose Crimping Machine 10 Inch Composite Hose Crimping Machine Industrial / Composite / Hydraulic Hose Crimping Machine |
36~460mm | For crimping large high-pressure fuel pipes, industrial hoses, large water hoses, composite hose, discharge hose etc. |
| Heavy Duty（4”-25”） | SuperKam 680 | 16″ HOSE CRIMPER | 12 Inch, 14 Inch, 16 Inch Industrial Hose Crimping Machine 14 Inch Composite Hose Crimping Machine Industrial / Composite Hose / HDPE |
36~550mm | For crimping large high-pressure fuel pipes, industrial hoses, large water hoses, composite hose, discharge hose etc. |
| Heavy Duty（4”-25”） | SuperKam 880 | 25″ HOSE CRIMPER | 24 Inch Industrial Hose Crimping Machine 24 Inch, 25 Inch Composite Hose Crimping Machine Hydraulic / Industrial / Composite Hoses Crimping Machine |
79~720mm | For crimping large high-pressure fuel pipes, industrial hoses, large water hoses, composite hose, discharge hose etc. |
